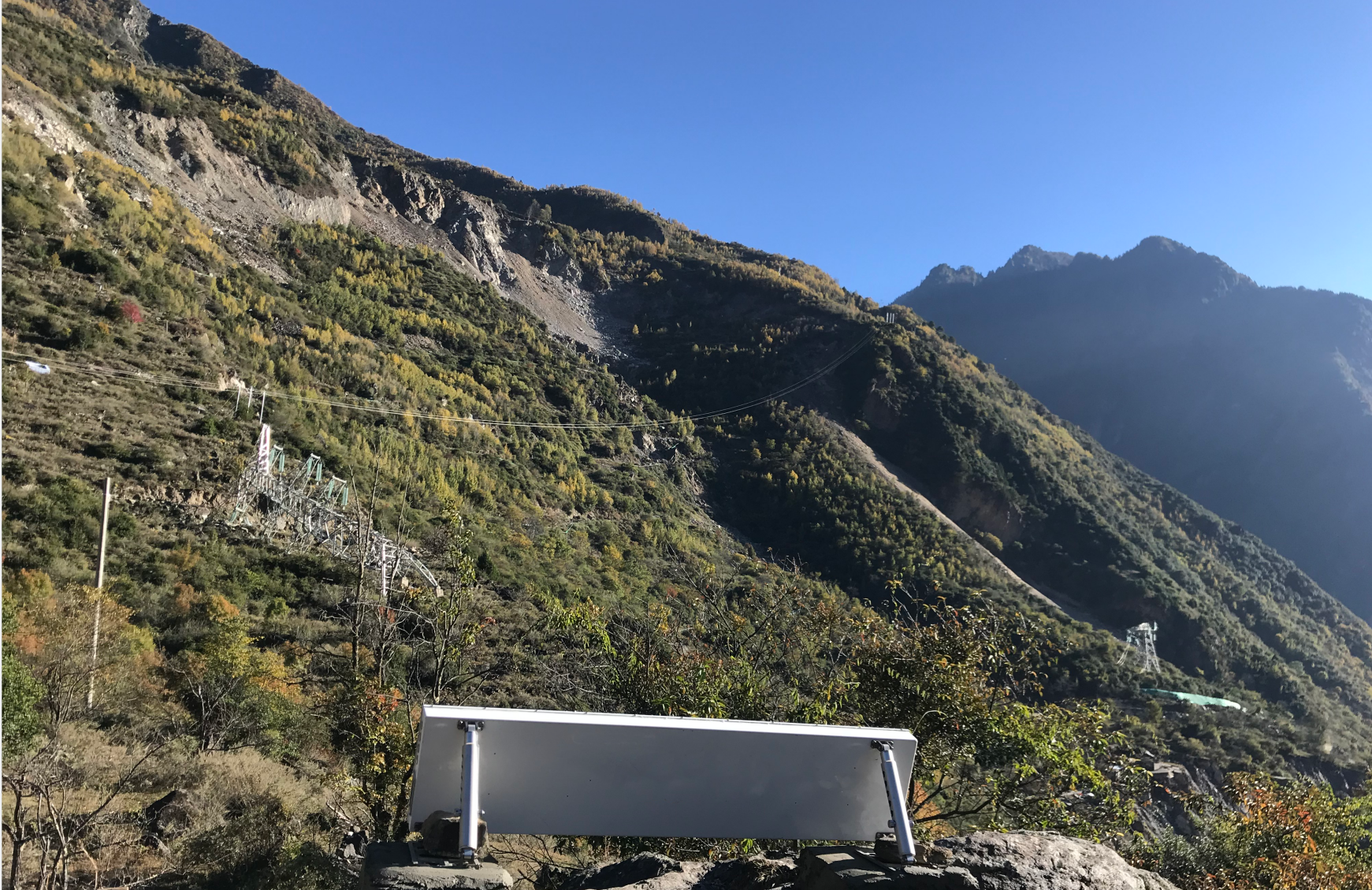

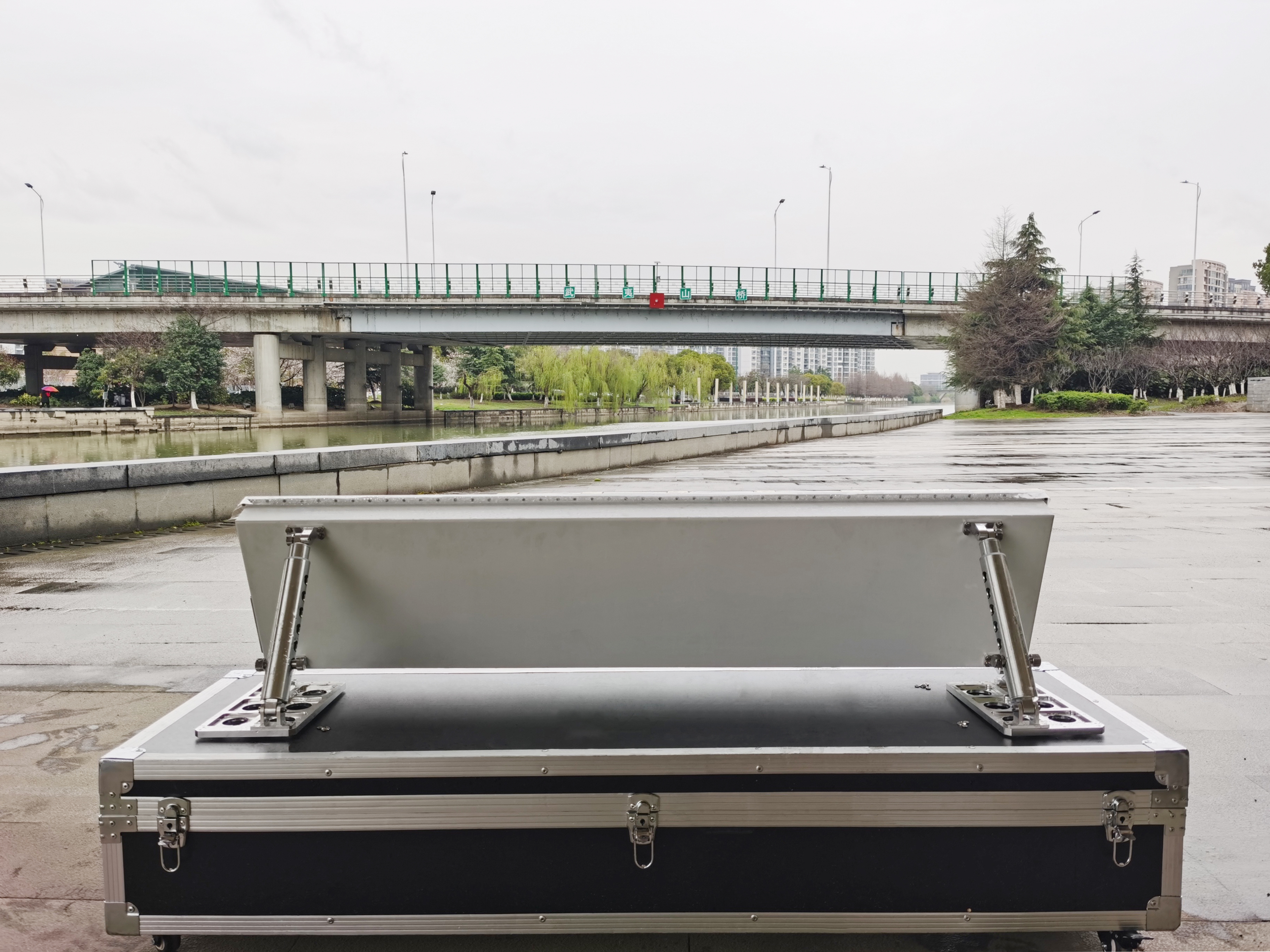

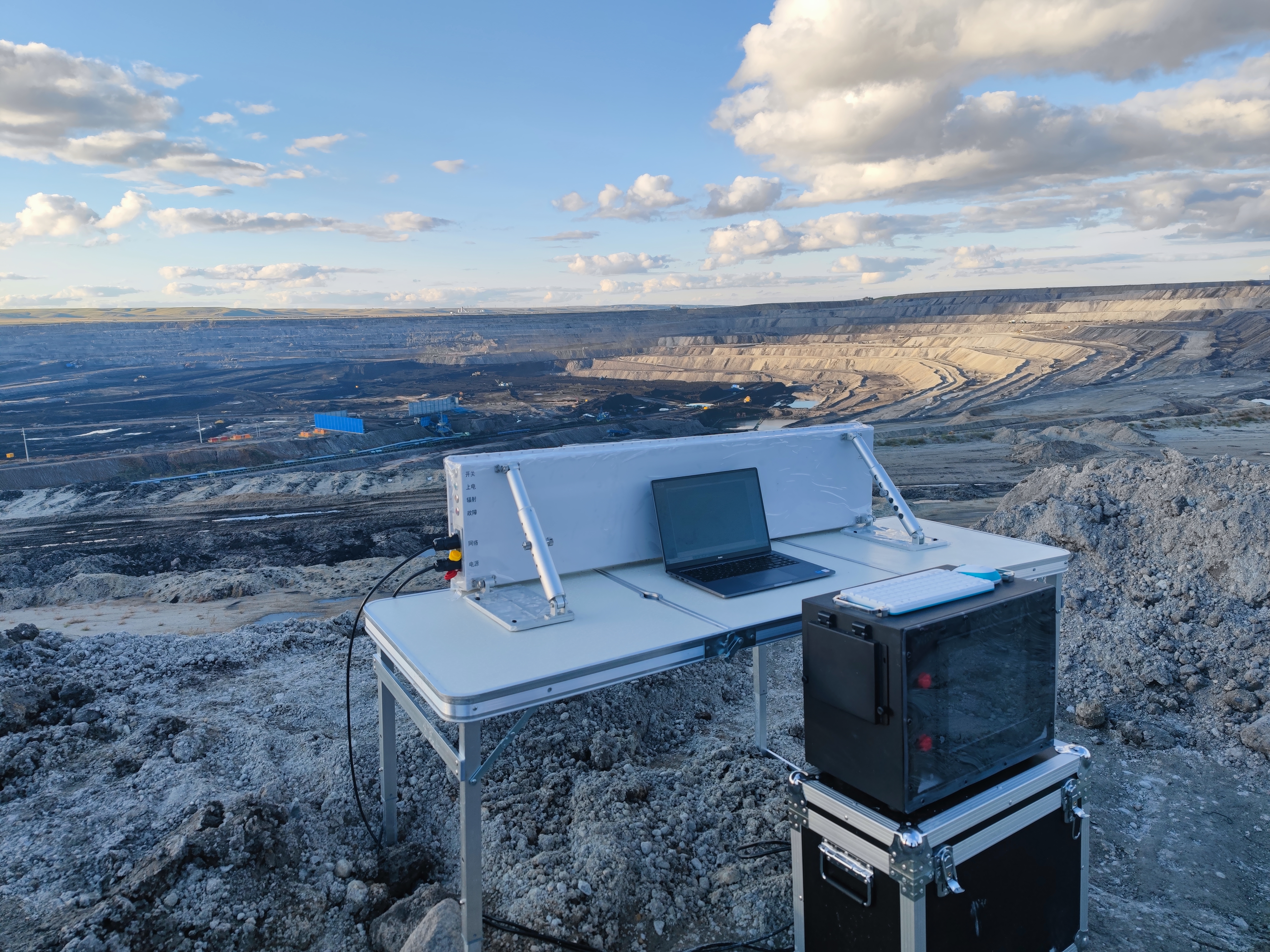

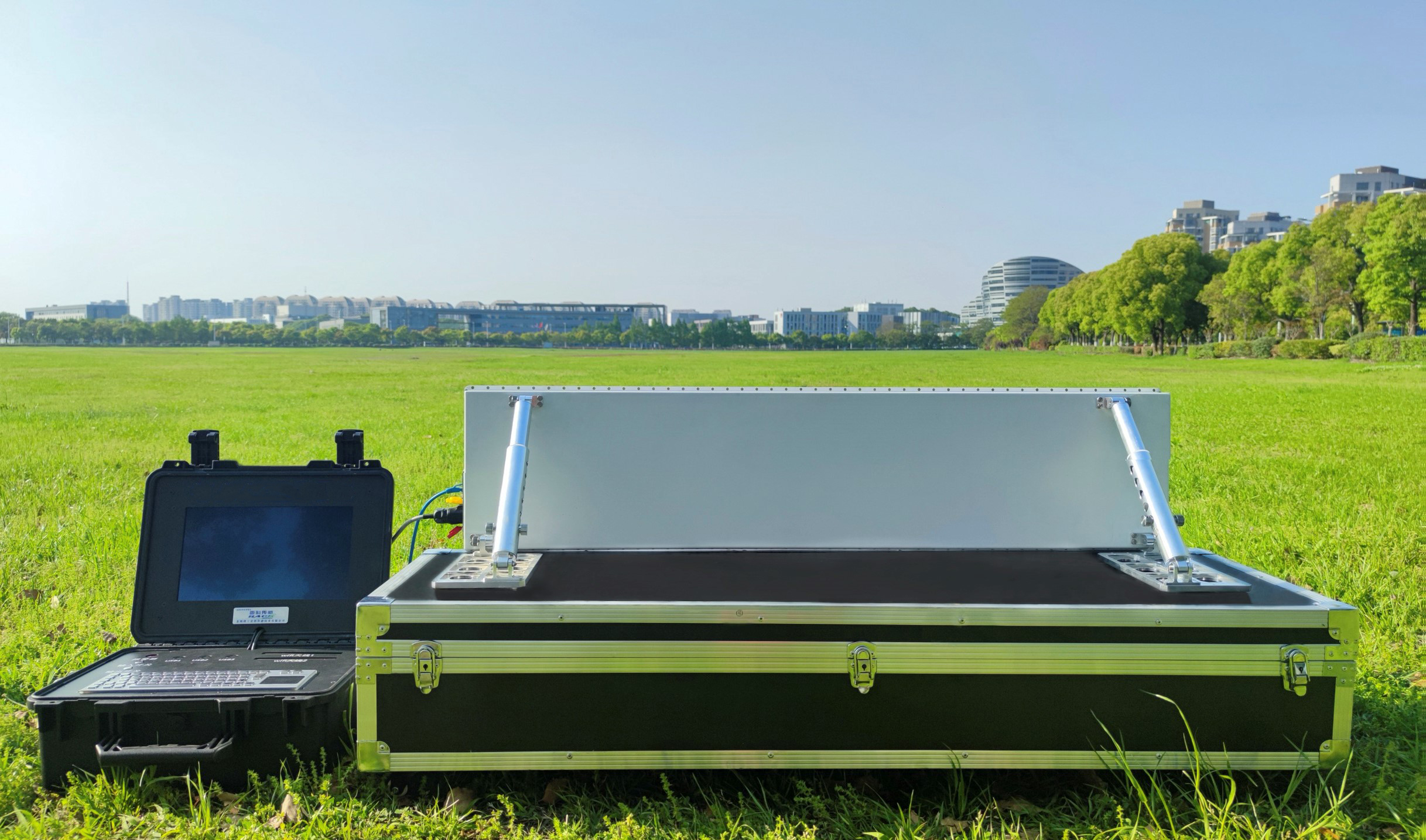

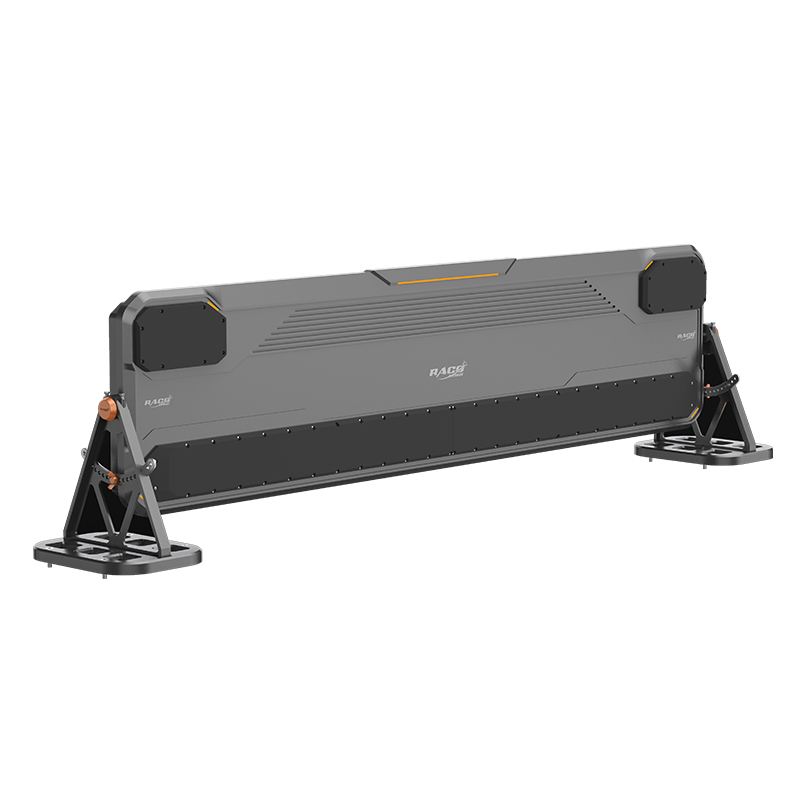

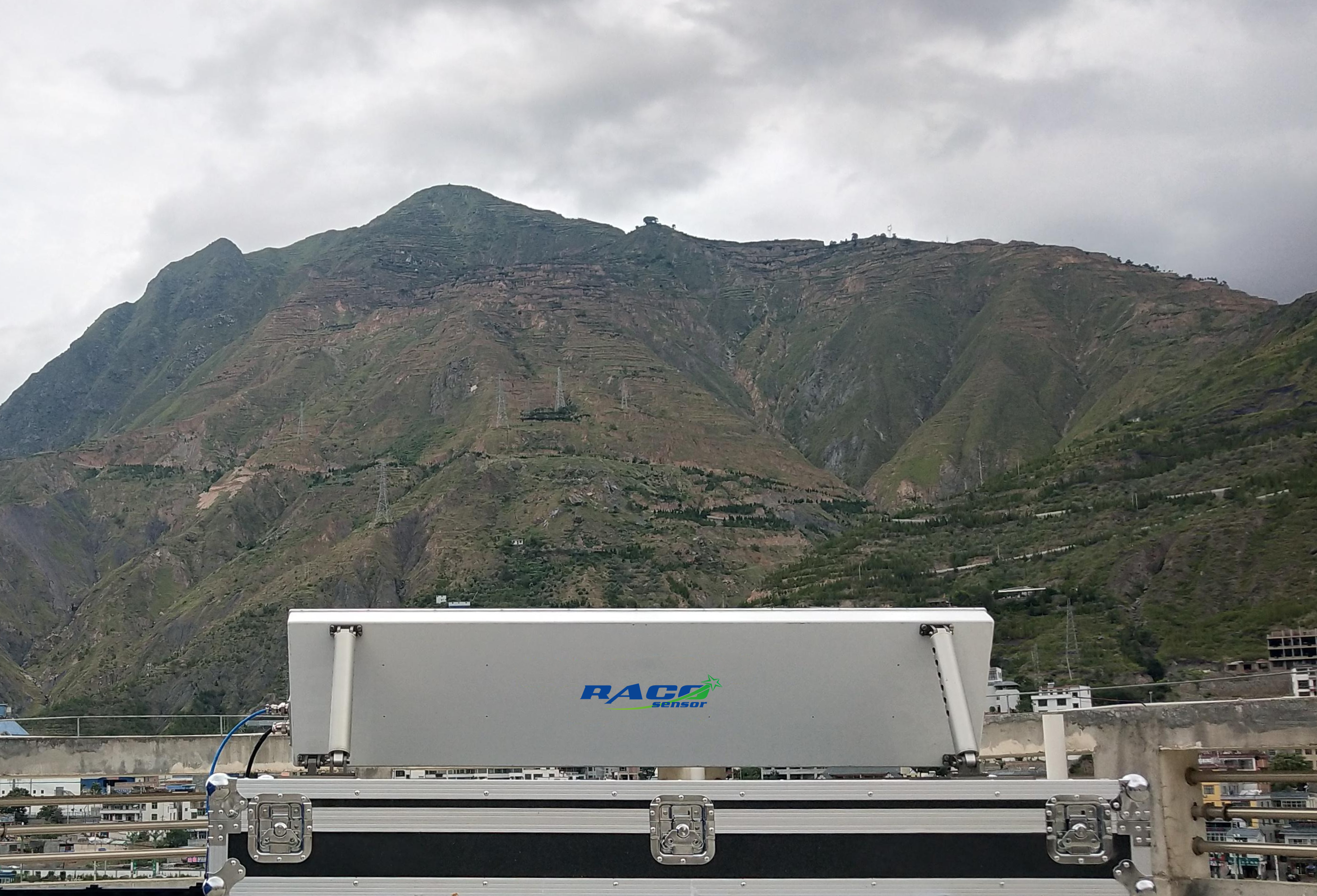

This high-precision portable remote monitoring system is the only all-solid-state electronic scanning deformation monitoring radar on the market. It can be used for real-time surface deformation measurement in open-pit mines, geological landslide disasters, dams and other areas, as well as the early warning of landslide hazards. This product features a small and lightweight structure, allowing it to be carried by hand. It has low power consumption and supports solar power. Due to its high reliability, it is suitable for field work. It marks a new era in all-solid-state deformation monitoring radars.
High stability: all solid-state electronic scanning, no mechanical motion structure
Easy to carry: Radar ≤15kg, can be carried and installed by single person
Multi-source data fusion: support the data fusion of weather stations,rain gauges, GNSS, etc.
Various power supply modes: support power supply modes such as electric supply, generators, and solar
Flexible installation: support application mode including fixed and vehicle-mounted installation
| Target type | Bare surface |
| Distance | ≥4km |
| Deformation accuracy | ≤0.1mm |
| Resolution | 0.15m x 7.5mrad(A) |
| Monitoring range（Horizontal） | 100° |
| Monitoring range（Vertical） | 40° |
| Length x width x height | 140cm x 15cm x 35cm |
| Weight | ≤15kg |
| power requirements | 220V AC/24V DC |
| Monitoring frequency(data rate) | 10~300s |
| Power consumption | 40W |
| Operating temperature | -40℃~60℃ |
| Protection level | IP66 |
